| Specification | Details |
| Model Number | DB23 |
| Motor Configuration | Three Motors(Head and Foot Adjust, Pillow Tilt) |
| Available Sizes | Twin XL (80”*38”),Full(75”*54”),Queen(80”*60”),King(80”*76”),Split Cal King(84”*36”) |
| Control System | Richmat/Okin Wireless Remote |
| Adjustable Features | Head and Foot Adjustment ,Pillow Tilt Adjustment |
| Massage Function | Head and Foot Massage With Waves and Modes |
| Adjustable Legs | 3”+3”+6” Adjustable Height (3”,6”,9”,12”total range) |
| Power supply Features | Battery Backup Power Supply |
| Special Function | One-Key Flat; Memory Preset Keys;Flashlight; TV/ZG/ANTI-SNORE Preset |
| Folding Design | Center Folding |
| Zero-clearance | Zero-clearance Design |
| Deck Material | Fabric+Plywood |
| Upholstery Foam | 3-inch EPE Foam |
| Upholstery fabric | Black anti-slip fabric and Black Upholstered Linen Fabric |
| Lighting and USB | 2*USB/TYPE and 2*Under Bed Lights |
| Bluetooth App | Yes |
| Optional Features | Sleep Tracking System; Voice Command Control; Solid Wood Bed Legs; HBB |
| Certificates | CE,UL,ETL,SAA and FCC;Law Label Certificates |
| Tests | 15,000 Cycle of Testing;16 CFR Part 1633 Testing; |
| Weight capacity | 800LBS |
| Warranty | 1. Electrical components come with a three-year warranty and 5 years warranty for the frame.2. We will provide you with 1% spare parts for free when container loading. |
The AF-DB23 is the bed people actually live in during the evening, not just sleep on. Its three motors raise the head and foot and add a tilting head section that angles the neck forward, the position that makes watching a show or reading a few chapters comfortable without a pile of pillows. For a brand, it lands as a lifestyle base aimed at buyers who spend real time sitting up in bed, and it carries a full feature set across every size from Twin XL to Split Cal King.
Built for sitting up in bed

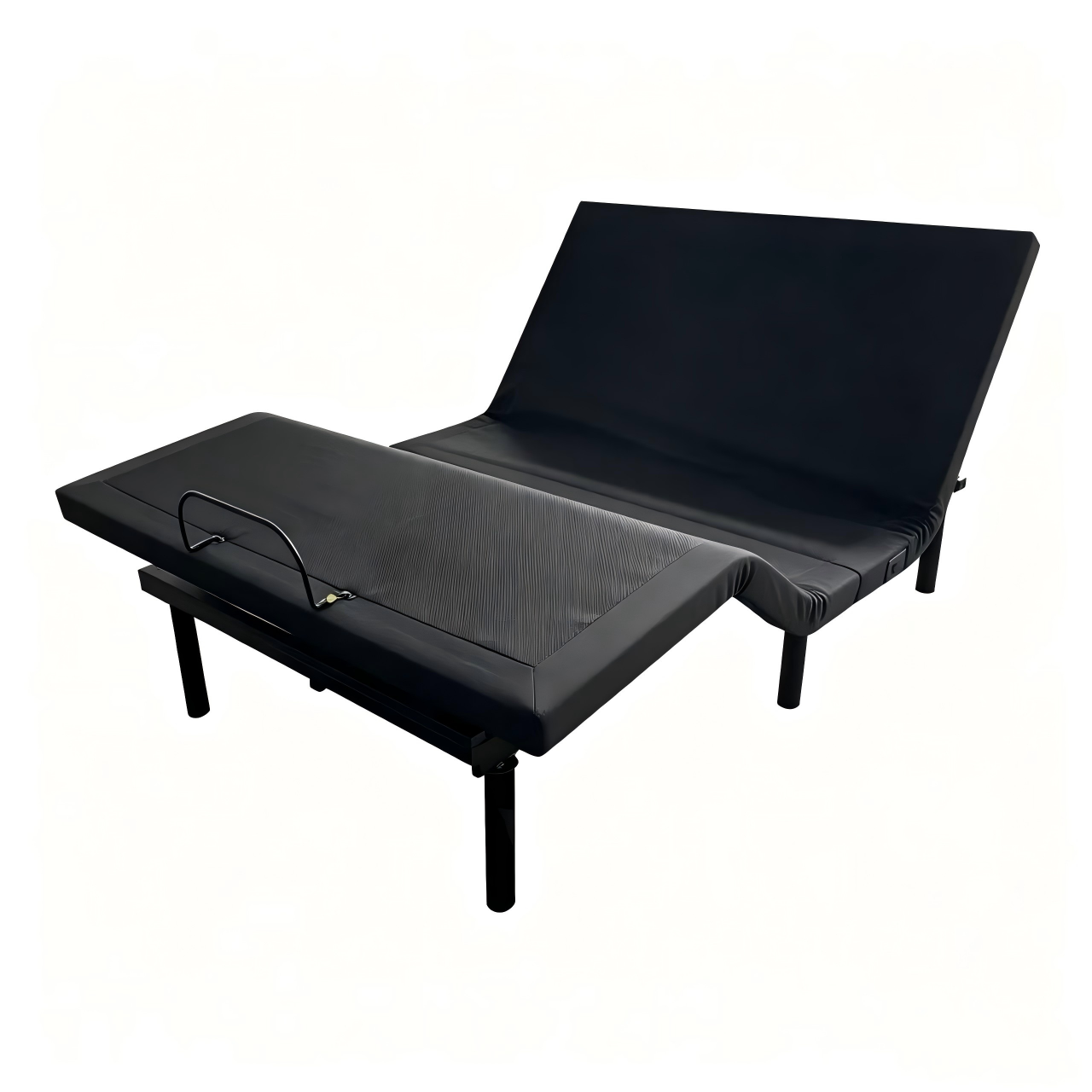

Reading and watching TV in bed usually means stacking cushions behind the back and still ending up with a sore neck. The AF-DB23 handles it differently. Raising the head brings the torso up, and the separate head-tilt motor then angles the top section forward so the neck and head are supported at a natural viewing angle. The foot lifts to take pressure off the legs during a long movie. A One-Key Flat button drops it all back down for sleep, and memory presets save a favorite TV or reading position for one-press recall.
A full evening-comfort feature set

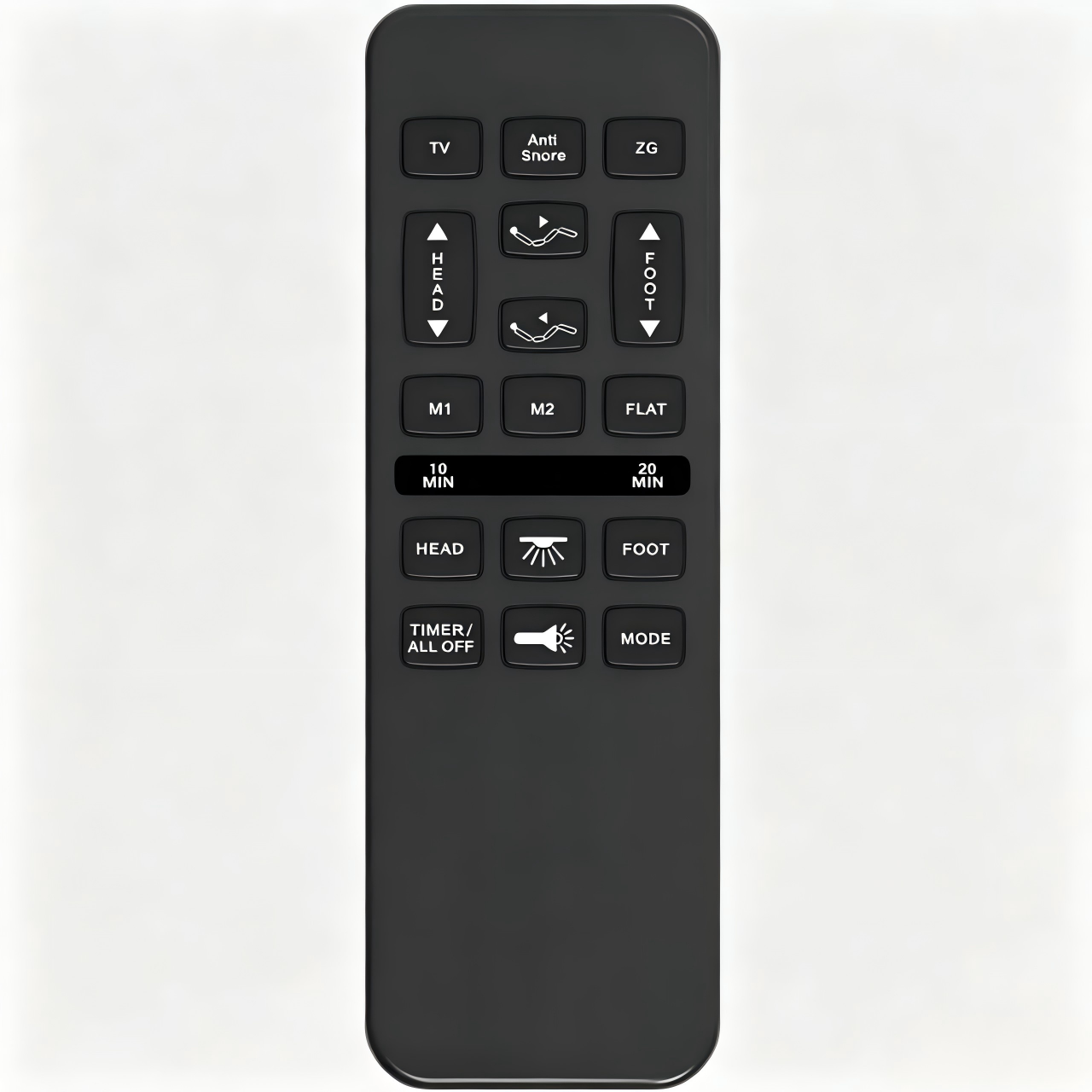

This is not a stripped base. Head and foot massage runs in wave and mode patterns to unwind after a long day, and a TV preset and anti-snore mode are built into the wireless remote. A backup battery means the bed still moves during a power cut, so a raised position is never locked. The standard build covers what an evening-in-bed buyer expects, which keeps the pitch simple for a retailer positioning it as a relaxation-focused model.
Charging, lighting and app

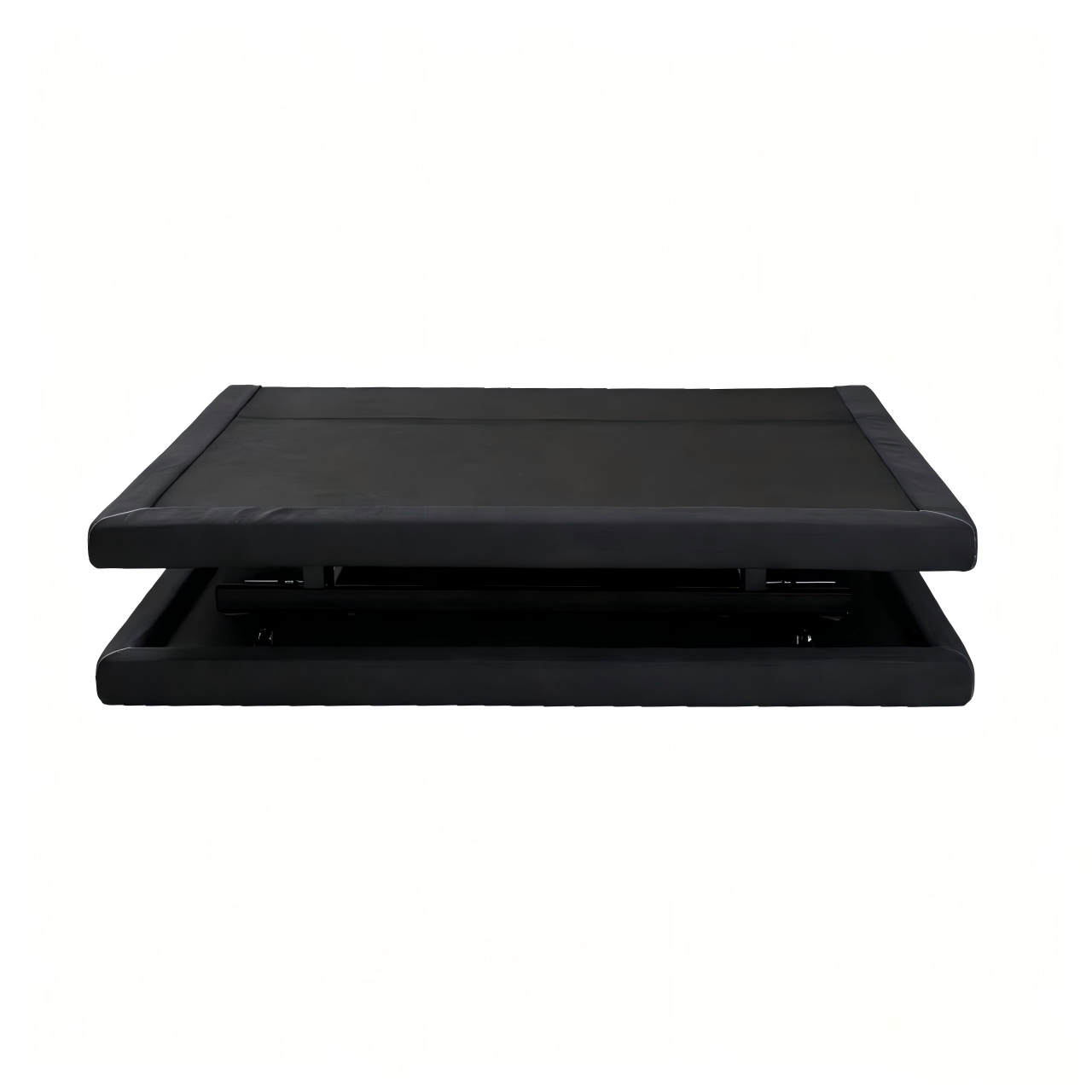

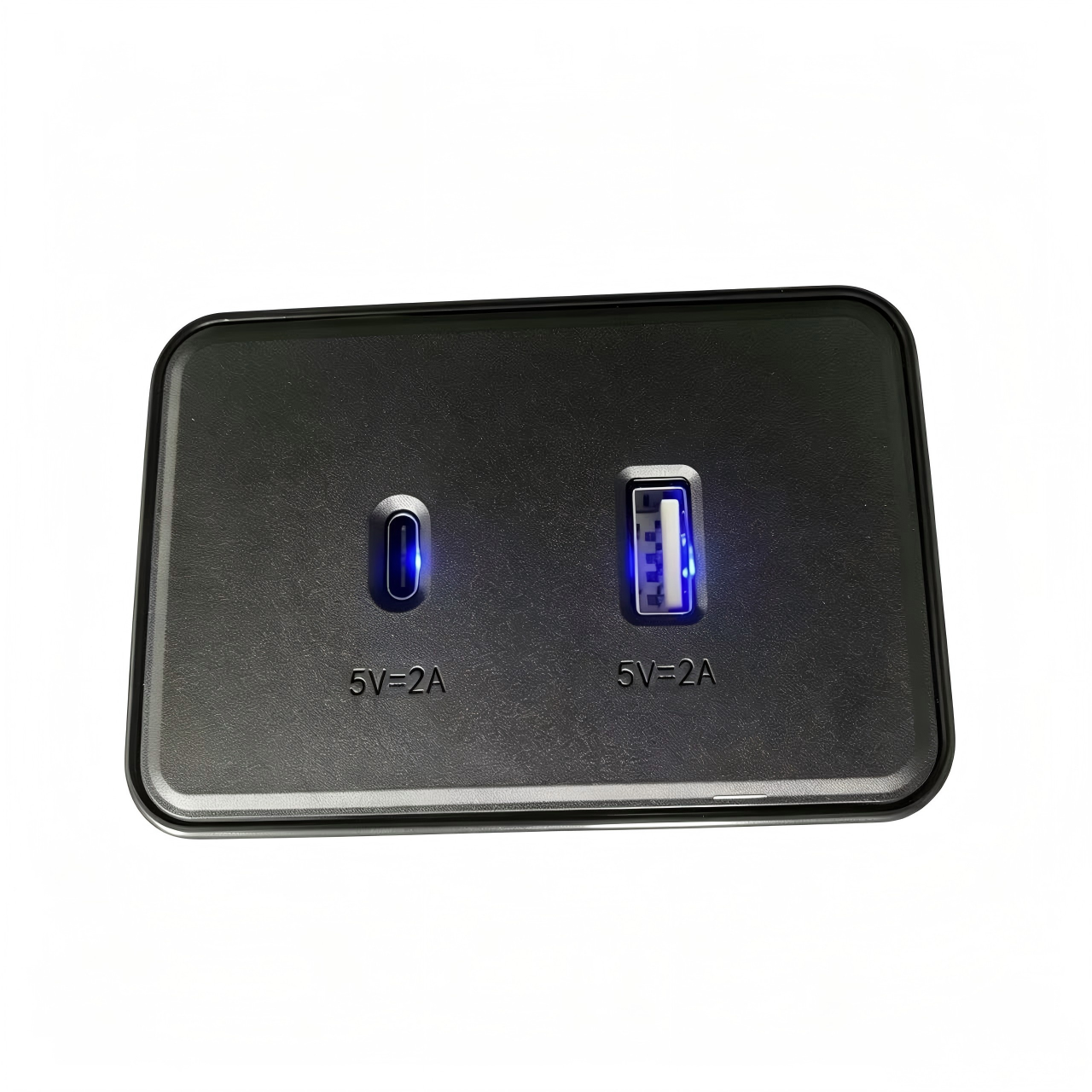

A long evening of streaming drains a phone, so the AF-DB23 puts USB and Type-C outlets right at the head, two of them, to keep a device or e-reader topped up without leaving bed. When the show ends, low under-deck lighting marks the way across the room instead of a harsh overhead lamp. The base answers to a Bluetooth app as well as the handheld remote, and voice control plus sleep tracking can be layered on. Comfort comes from a 3-inch EPE foam top on a plywood deck, wrapped in grippy black cloth and a linen outer, with a fold-at-center, flush-fit build for shipping.
Sizing, build and certification
Five sizes are on offer, covering the standard span up to Split Cal King for couples who want two halves. Leg height steps through four settings between 3 and 12 inches, and the platform takes 800 lbs. The compliance list reads CE, UL, ETL, SAA and FCC, with Law Label documents, a 15,000-cycle endurance pass, and 16 CFR Part 1633 flammability clearance. The cover sits at five years on the frame and three across the board, the kind of guarantee a serious importer checks for.
Frequently Asked Questions
What makes the AF-DB23 good for watching TV in bed?
The head-tilt motor angles the upper head section forward, on top of the main head lift, so the neck is supported at a comfortable viewing angle instead of craned against a headboard. Paired with the TV preset on the remote, it gets a sleeper into a relaxed watching position in one move.
How is the head tilt different from just raising the head?
Raising the head lifts the whole upper body. The head tilt adjusts only the top section, fine-tuning the neck and head angle once the back is already up. Together they let a user dial in a position for reading or screen time that a single head lift cannot reach on its own.
Does it work as a normal sleep bed too?
Yes. The One-Key Flat button returns the bed to level for sleeping, and the head and foot adjust like any adjustable base. The tilt is an extra layer of comfort for time spent awake in bed, not a replacement for the standard positions.
What sizes can I get?
The lineup runs Twin XL, Full, Queen, King, and Split Cal King. A solo buyer or a tighter bedroom is served by the single sizes, while the Split Cal King hands each partner their own controllable half. Stocking the full spread lets a retailer meet most room and household types with one SKU family.
What mattress should go on it?
Pick something that flexes, with memory foam and latex working best and bend-friendly hybrids close behind. A rigid innerspring tends to push against the head, foot, and tilt motion, so it is a poor companion. The textured deck surface stops the mattress from sliding while the sections change angle.
