AF-DB14 PILLOW TILT AND LUMBAR
AF-DB14 PILLOW TILT AND LUMBAR
AF-DB14 PILLOW TILT AND LUMBAR
AF-DB14 PILLOW TILT AND LUMBAR
AF-DB14 PILLOW TILT AND LUMBAR
AF-DB14 PILLOW TILT AND LUMBAR
AF-DB14 PILLOW TILT AND LUMBAR
AF-DB14 PILLOW TILT AND LUMBAR
AF-DB14 PILLOW TILT AND LUMBAR
AF-DB14 PILLOW TILT AND LUMBAR

AF-DB14 PILLOW TILT AND LUMBAR

Service & Delivery

MOQ: 50 units per model per size
Lead Time: 25-30 days standard, 35-40 days custom
Customization: Fabric, finish, branding, motor options
OEM & White Label supported
Warranty: 3-year structure, 2-year electronics
Shipping: FOB Long An Port or CIF terms

SpecificationDetails
Model NumberDB14
Motor ConfigurationFour Motors(Head and Foot Adjust, Pillow Tilt and Lumbar Support)
Available SizesTwin XL (80”*38”),Full(75”*54”),Queen(80”*60”),King(80”*76”),Split Cal King(84”*36”)
Control SystemRichmat/Okin Wireless Remote
Adjustable FeaturesHead and Foot Adjustment ,Pillow Tilt Adjustment, Lumbar Support Adjustment
Massage FunctionHead and Foot Massage With Waves and Modes
Adjustable Legs3”+3”+6” Adjustable Height (3”,6”,9”,12”total range)
Power supply FeaturesBattery Backup Power Supply
Special FunctionOne-Key Flat; Memory Preset Keys;Flashlight; TV/ZG/ANTI-SNORE Preset

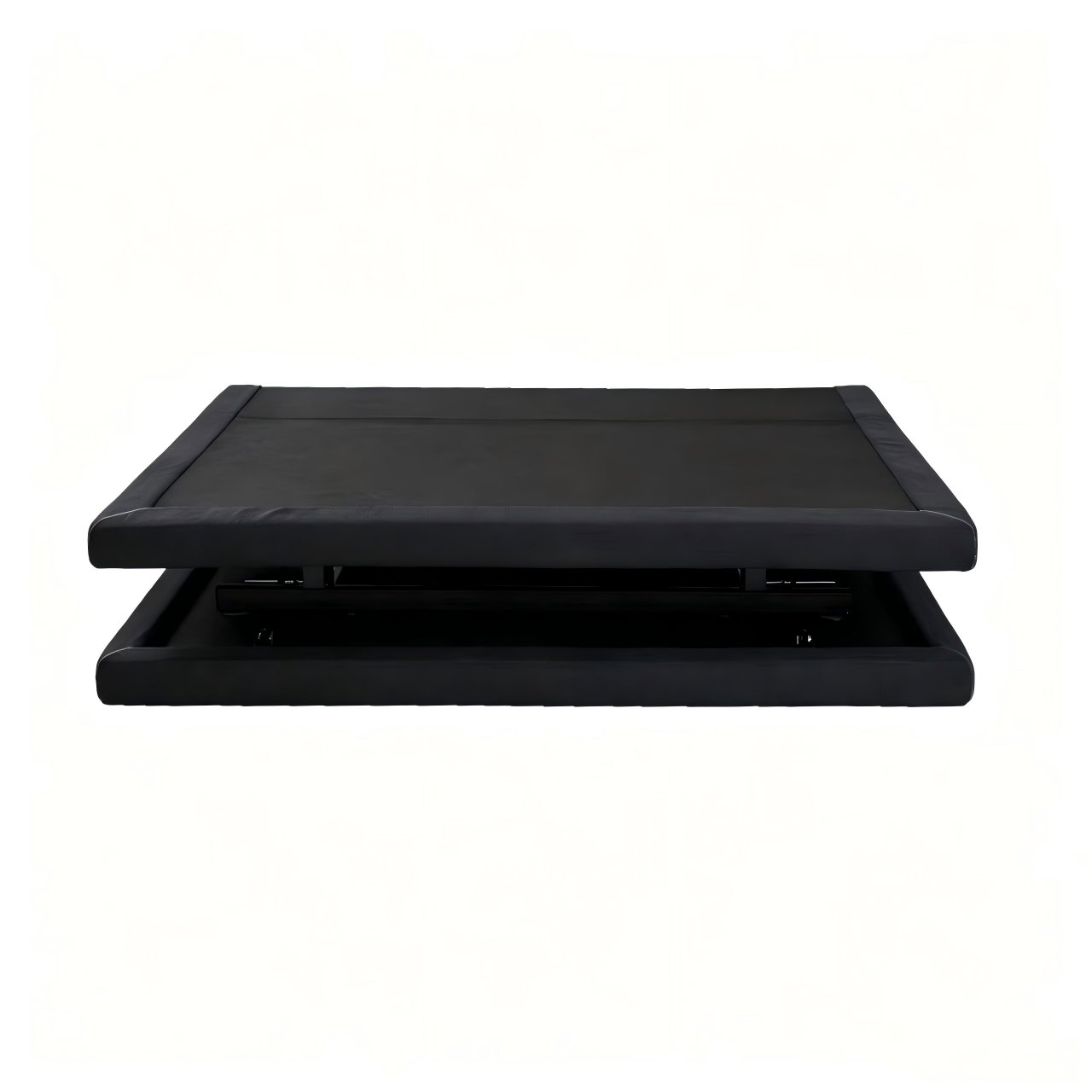

Folding DesignCenter Folding
Zero-clearanceZero-clearance Design
Deck MaterialFabric+Plywood
Upholstery Foam3-inch EPE Foam
Upholstery fabricBlack anti-slip fabric and Black Upholstered Linen Fabric
Lighting and USB2*USB/TYPE and 2*Under Bed Lights
Bluetooth AppYes
Optional FeaturesSleep Tracking System; Voice Command Control; Solid Wood Bed Legs; HBB
CertificatesCE,UL,ETL,SAA and FCC;Law Label Certificates
Tests15,000 Cycle of Testing;16 CFR Part 1633 Testing;
Weight capacity800LBS
Warranty1. Electrical components come with a three-year warranty and 5 years warranty for the frame.2. We will provide you with 1% spare parts for free when container loading.

The AF-DB14 is the all-rounder of the line. It runs four motors and carries nearly every feature a shopper looks for, without leaning on a single headline gimmick. That makes it the base a brand reaches for when it wants one model to satisfy the widest range of buyers rather than a niche product built around one trick. Head and foot movement, extra articulation, massage, charging, app control, and a backup battery all come standard, across the full size run from Twin XL to Split Cal King.

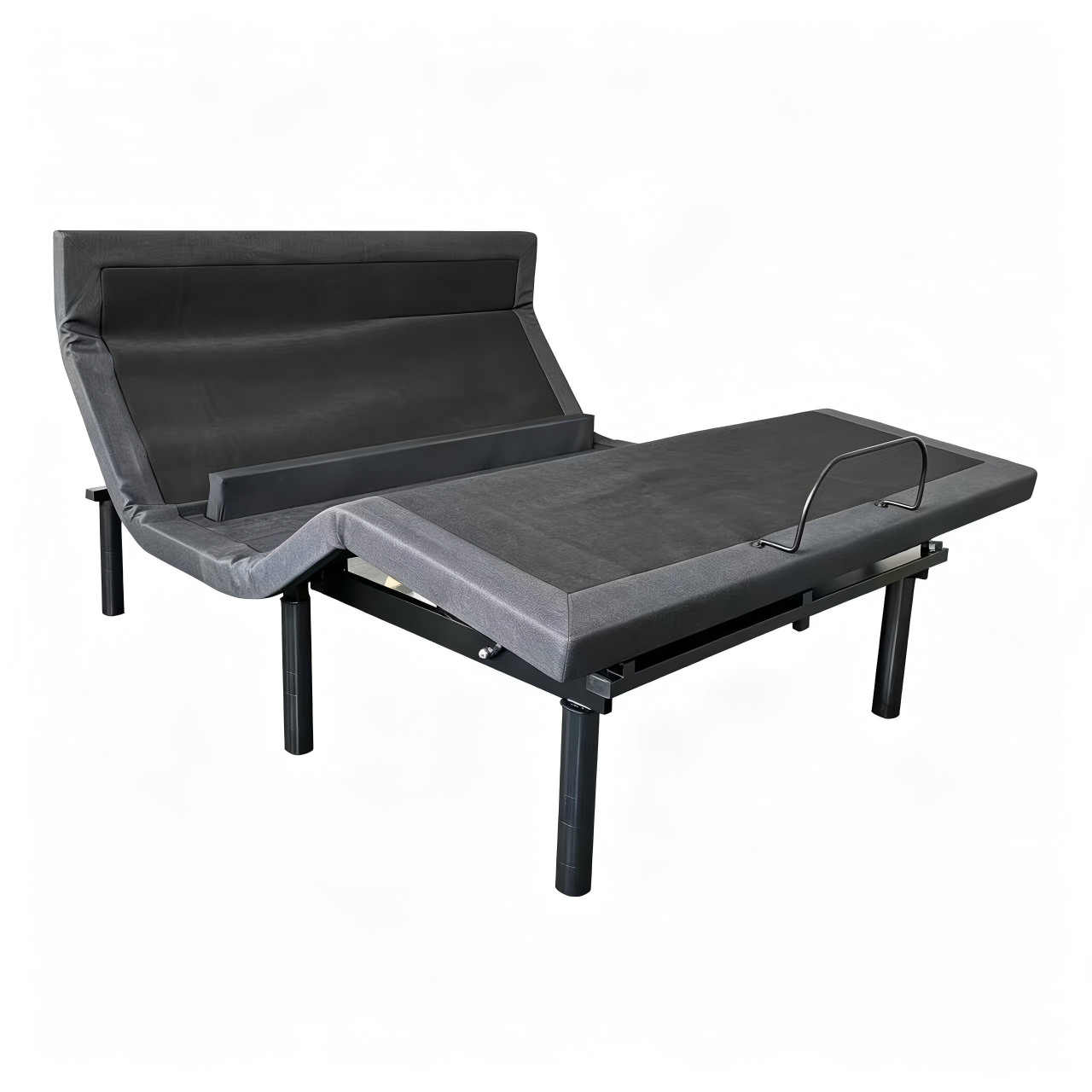

A balanced four-motor base

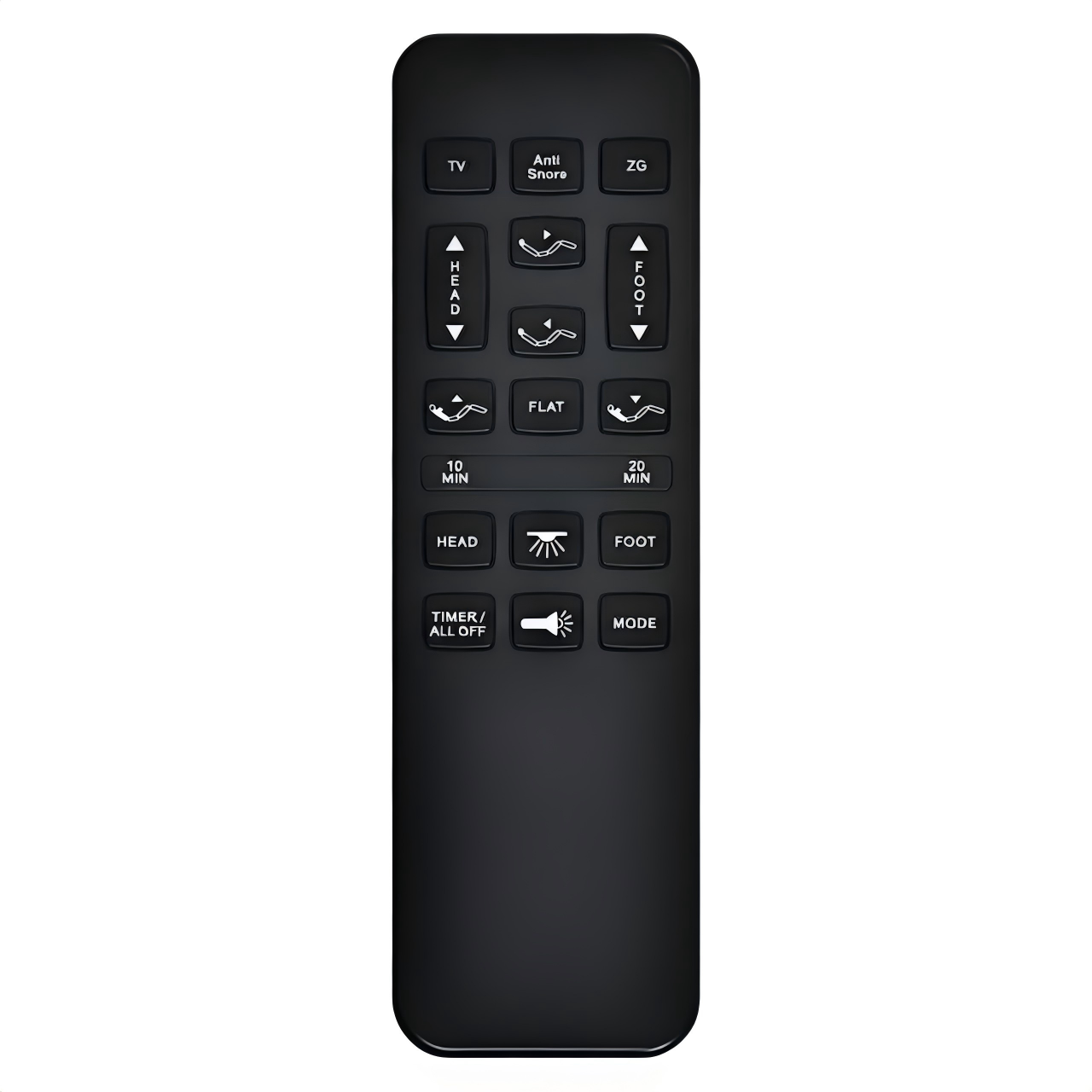

Plenty of adjustable beds are sold on one standout feature. The AF-DB14 takes the opposite route and covers the basics thoroughly. Four motors handle the core positions plus added contouring, so a sleeper can sit up to read, raise the legs, or settle into a saved preset, all from a Richmat or Okin wireless remote. A One-Key Flat button resets the bed, and presets store the positions a household returns to night after night. For a retailer, a base that does everything competently is often an easier sell than one that does a single thing brilliantly and the rest poorly.

Everyday comfort built in

Massage runs at the head and foot with wave and mode options, useful for winding down before sleep. The remote carries TV, anti-snore, and memory presets, and a backup battery keeps the bed usable if the power drops. The standard build is generous: this is not a stripped base that forces buyers into add-ons to get a usable bed. Most of what shoppers expect is already here, which keeps the value story simple for a brand pitching it as a main-line product.

Charging, app and finish

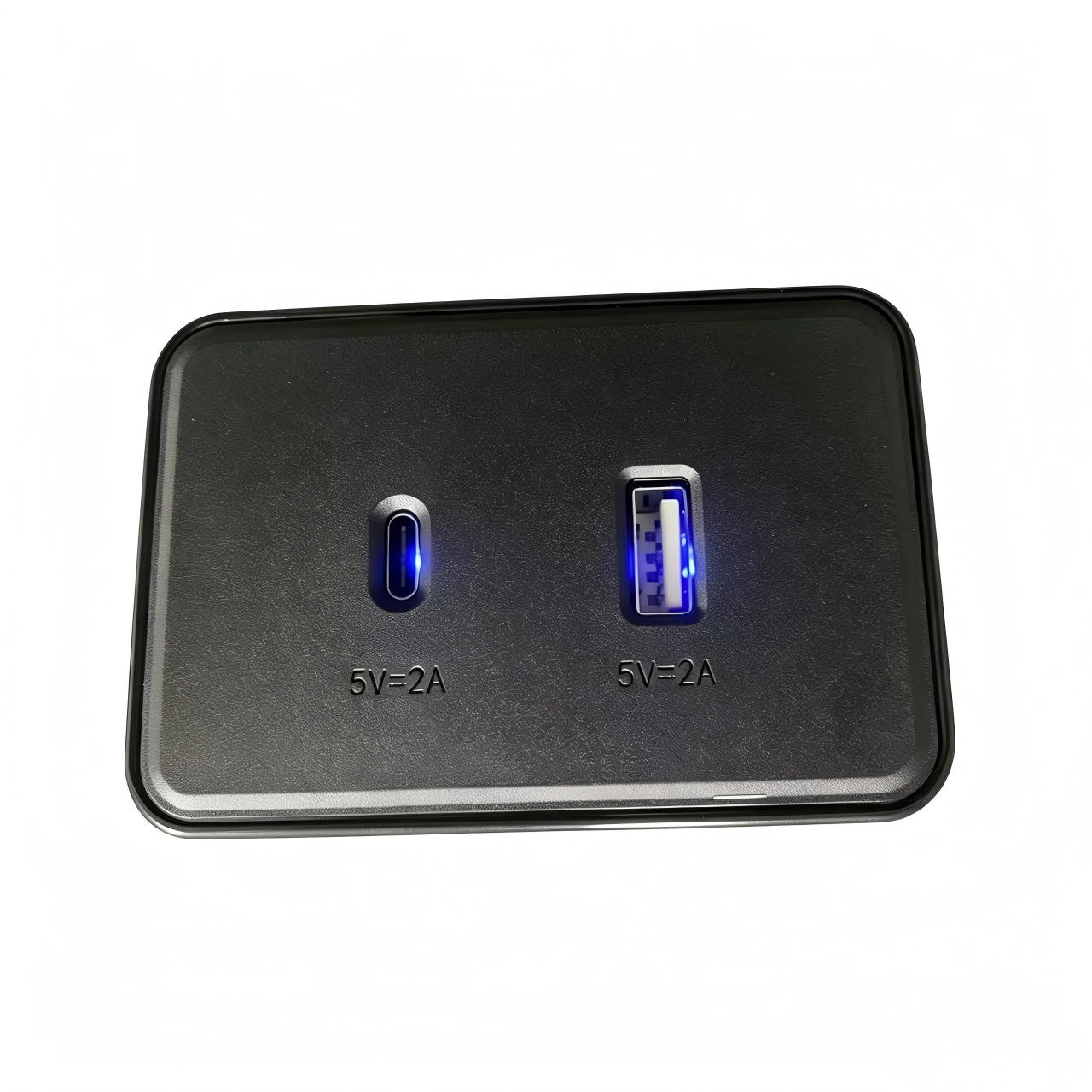

A pair of USB and Type-C outlets at the headboard keep bedside devices topped up, while soft lighting under the deck helps with late-night movement. Control runs through both the handheld remote and a phone app over Bluetooth, and a connected build can layer in sleep tracking plus voice operation. Cushioning comes from a 3-inch EPE foam top on a plywood deck, surfaced in grippy black cloth and a linen finish. Despite the full motor set, the frame still folds at the center and sits flush, so freight and frame-fitting stay manageable.

Sizing, build and certification

Size coverage spans the standard lineup, from Twin XL up through Split Cal King, so a catalog can stock one model for every room. The legs set to four heights between 3 and 12 inches, and the platform holds up to 800 lbs. On paper the bed clears CE, UL, ETL, SAA and FCC, ships with Law Label documentation, and has passed both the 15,000-cycle endurance run and 16 CFR Part 1633 flammability testing. Coverage is five years on the frame and three overall, the kind of assurance a buyer wants on a model meant to anchor a range.


Frequently Asked Questions

Who is the AF-DB14 best suited to?

Brands that want a single, do-everything base rather than a specialist model. With four motors and a full feature list across every size, it answers most of what a general shopper asks for, which makes it a practical choice for the center of a product range instead of a niche slot.

What comes standard versus optional?

Massage, charging ports, under-bed lighting, app control, and battery backup are all standard. Sleep tracking, voice command, solid wood legs, and a headboard bracket are the main options. The aim is a bed that works fully out of the box, with upgrades available rather than required.

What sizes does it come in?

Twin XL, Full, Queen, King, and Split Cal King. The Split Cal King gives couples two independent halves, while the single sizes suit solo sleepers or smaller rooms. The wide size run is part of why it works as a core model.

Can the AF-DB14 be private labeled?

Yes. Fabric, finish, branding, and motor options can be set at order, so a brand can position the same base across different price points or match it to a bedroom range. The standard feature set gives a solid starting spec to build a label around.

What mattress works on it?

Anything that flexes with the deck works well, with foam and latex being the easiest matches and bend-friendly hybrids close behind. A traditional innerspring tends to push back against the articulation, so it is best avoided. The textured deck surface stops the mattress from creeping while the bed changes position.
