The AF-DA0504 is built for two people who never agree on the same head angle. It splits the head of a king bed into two halves that raise and tilt on their own motors, so one side can sit up to read while the other stays flat, and each person sets their own pillow tilt for the neck. Five motors drive it: split head lift on the left and right, split head tilt on each side, and a shared foot lift. This is the high end of the line, aimed at brands selling to couples who want one bed that handles two sets of sleep habits.

Split Head and Independent Pillow Tilt

Most adjustable beds raise the whole upper body as one piece, which forces both partners into the same angle. The AF-DA0504 separates the head section down the middle. Each sleeper controls their own side from their own remote, so a snorer can prop their head up while their partner lies flat, with no one waking the other to change a setting. On top of that, pillow tilt adds a dedicated motor for the head and neck. Instead of lifting the back, it angles just the pillow area to support the cervical spine, which is the position people reach for when watching TV or reading without stacking pillows.

Five-Motor Layout

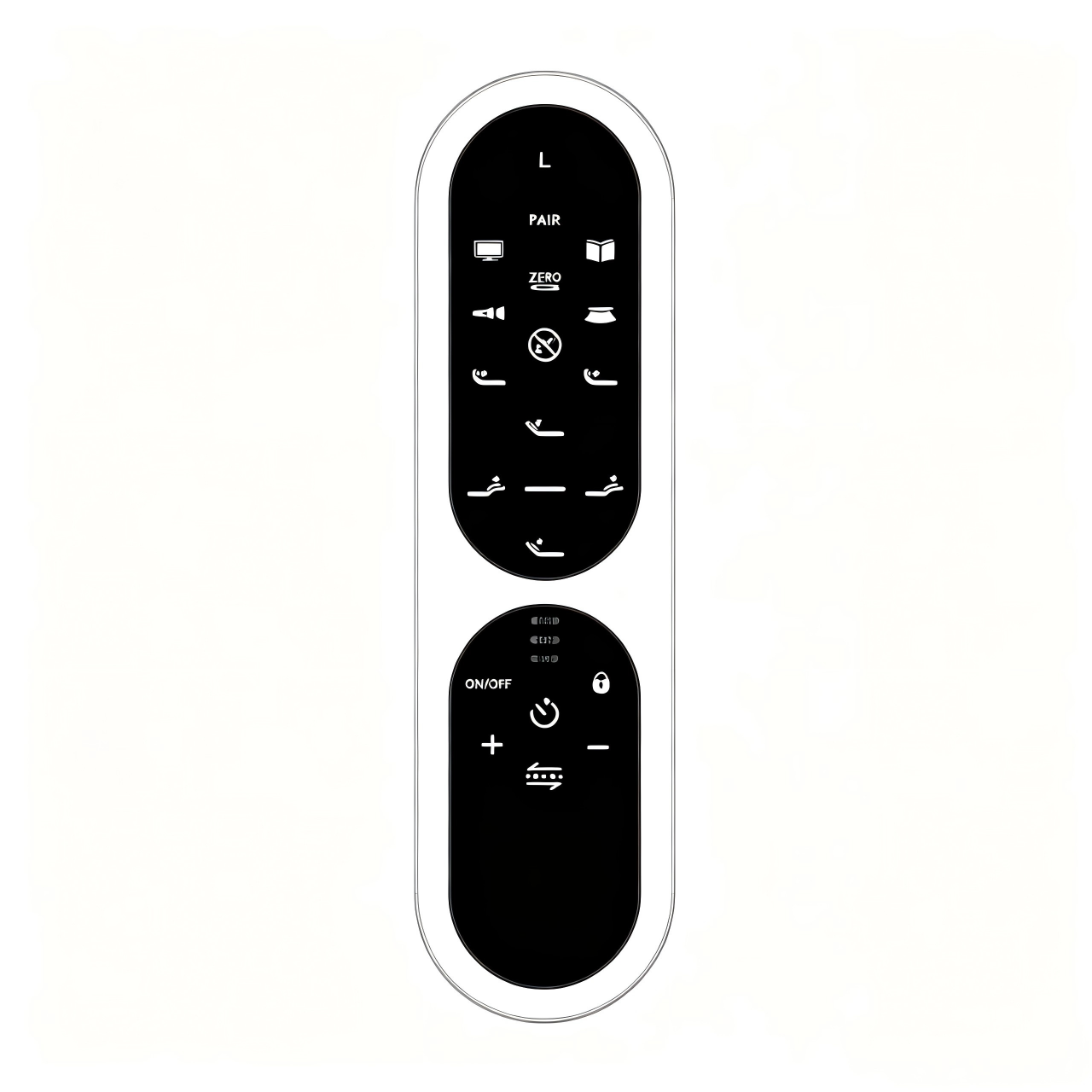

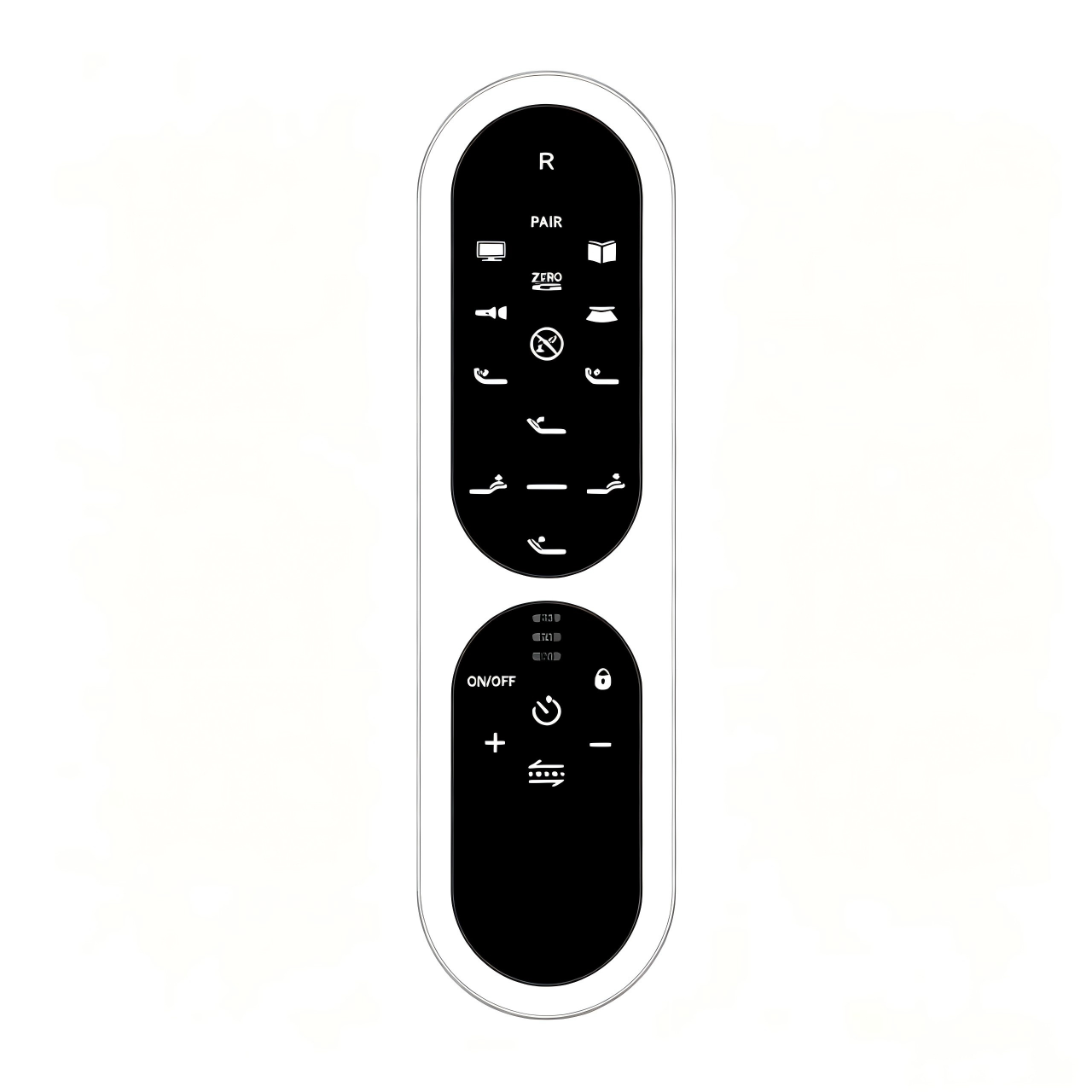

The five motors split into three jobs. Two handle the left and right head lift, two handle the left and right pillow tilt, and one runs the shared foot section. The foot stays unified because most couples want the same leg position even when their head angles differ. A Richmat or Okin wireless remote drives each side, and the bed ships with two remotes so both partners control their own half. Memory presets, a One-Key Flat reset, and TV and anti-snore modes round out the controls. A battery backup keeps the bed working through a power cut.

Comfort, App and Bedroom Features

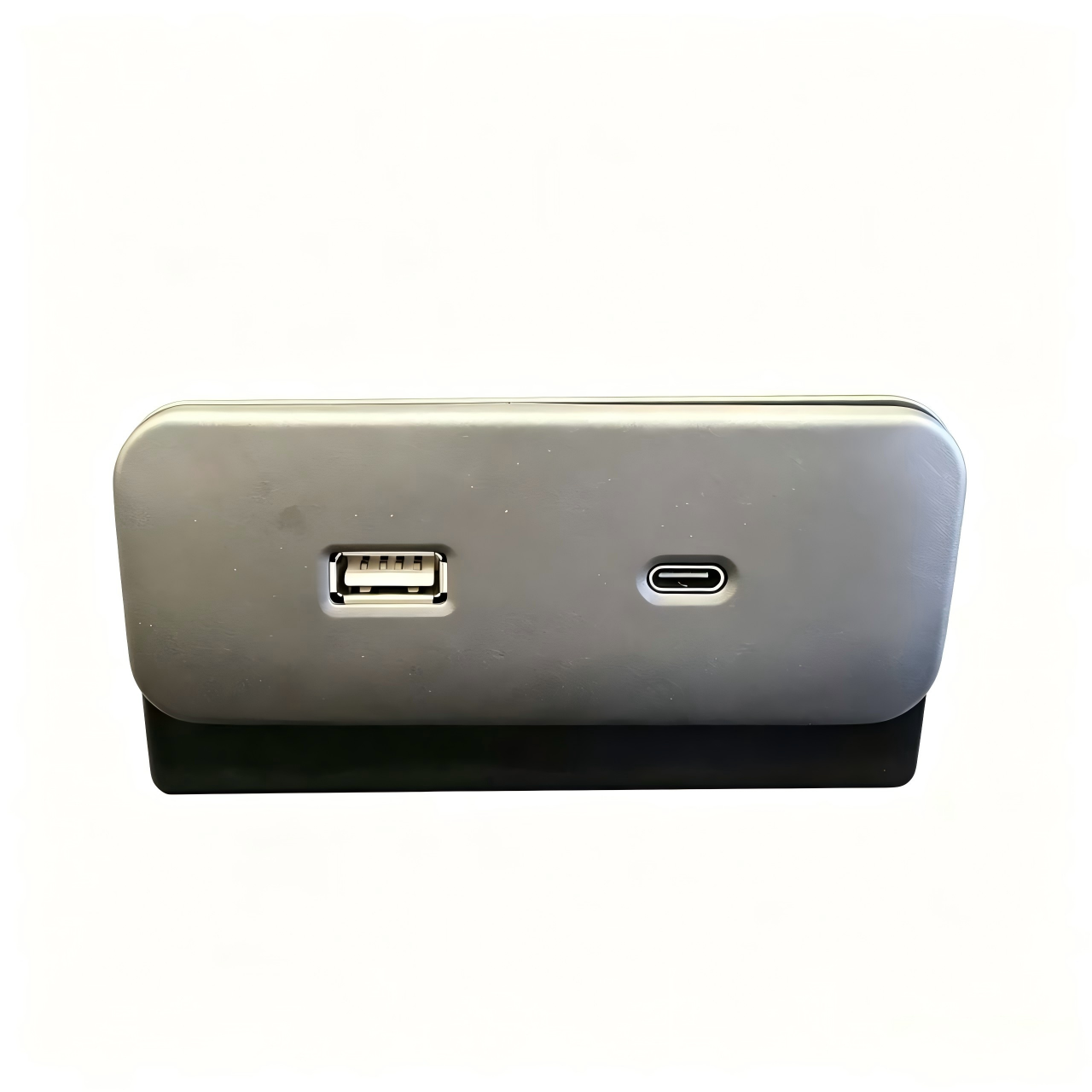

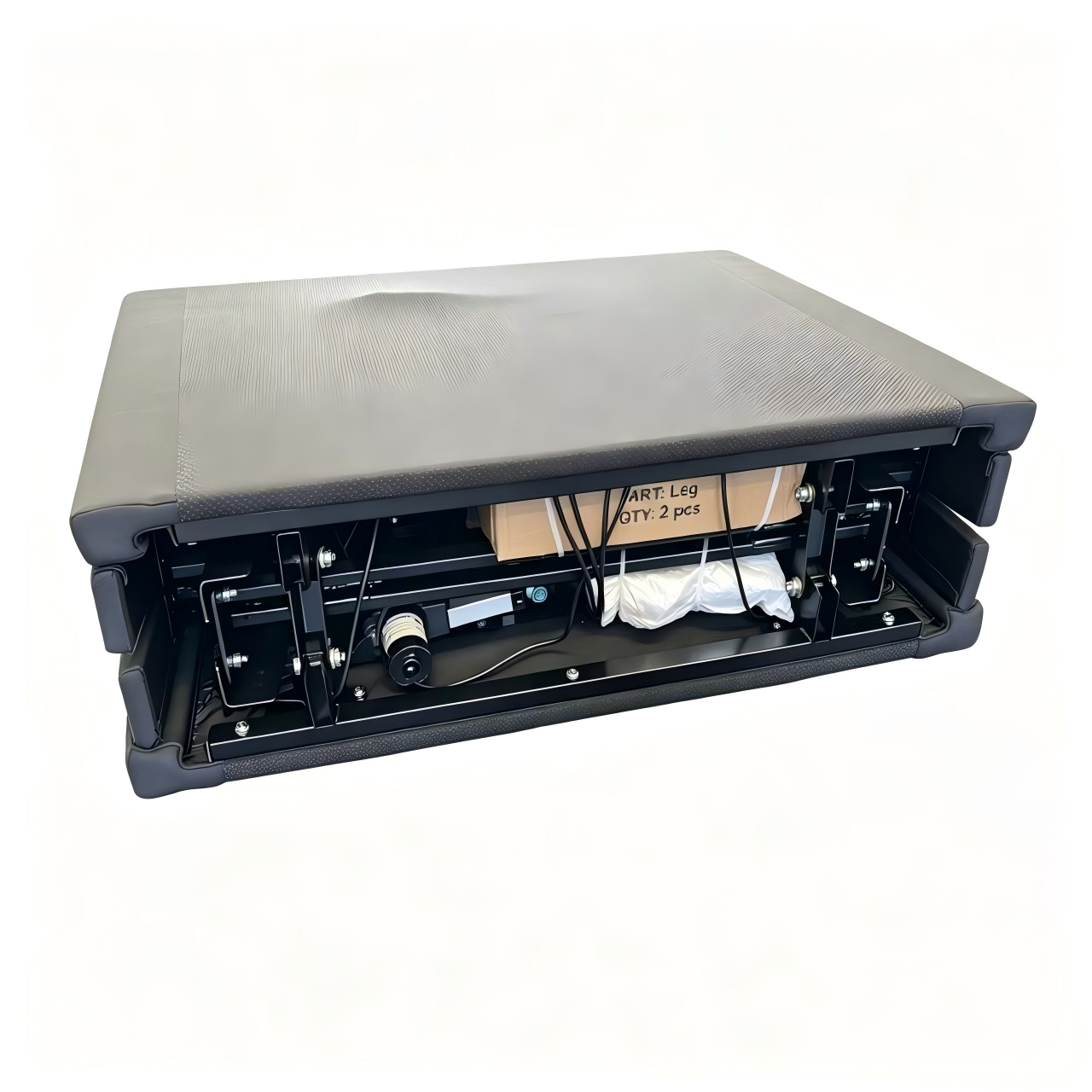

Head and foot massage runs in waves and modes on both sides. Two USB and Type ports sit at the head for charging, and two under-bed lights handle the path to the bathroom at night. A Bluetooth app gives phone control alongside the remotes, and the build supports optional sleep tracking and voice command for brands that want a smart-bed tier. The deck is fabric over plywood with three inches of EPE foam, finished in black anti-slip and upholstered linen. A center-folding, zero-clearance design keeps the base compact for shipping and frame fitment.

Sizing, Build and Certification

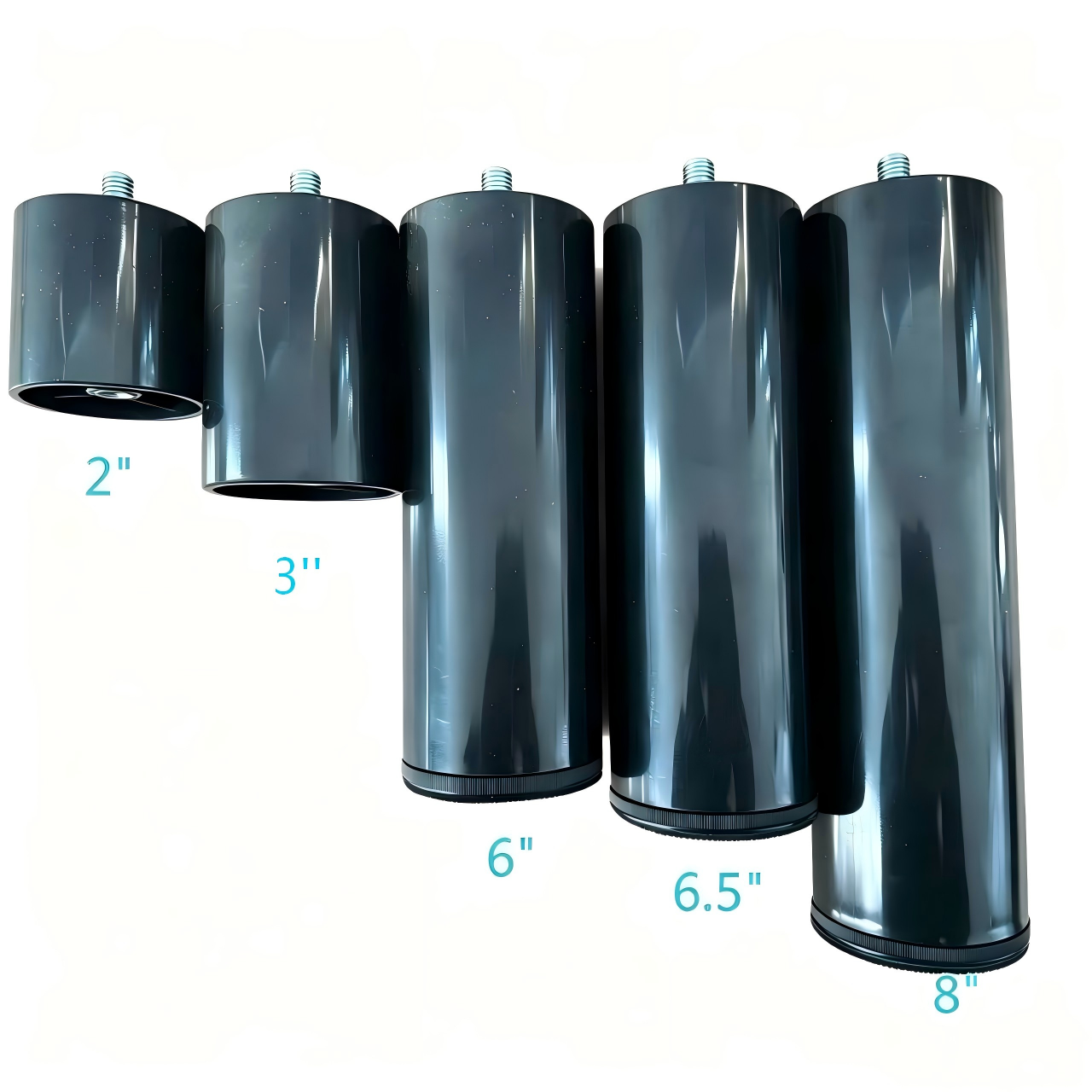

The AF-DA0504 comes in King and Split Cal King, the two sizes that make sense for a couples-focused base. Adjustable legs set the height at 3, 6, 9, or 12 inches. Weight capacity is 800 lbs. It meets CE, UL, ETL, SAA and FCC, with Law Label certificates, 15,000-cycle durability testing, and 16 CFR Part 1633 flammability testing. The frame carries a three-year warranty with five years on the structure, the kind of backing importers expect on a premium model.

Frequently Asked Questions

What is the difference between split head and split king?

Split king means two separate mattresses, each on its own base. Split head keeps a shared foot section but divides only the upper part, so each person adjusts their head and pillow tilt while sharing one foot end. The AF-DA0504 uses split head, which is why it suits couples who want independent head angles without two fully separate beds.

What does pillow tilt actually do?

Pillow tilt uses a dedicated motor to angle just the head and neck area, separate from the main head lift. Regular head elevation raises the whole upper body and can push the neck into an awkward angle. Pillow tilt keeps the neck supported on its own, which helps for reading, watching TV, or easing neck strain.

Can two people set different positions at the same time?

Yes. That is the point of this bed. Each side has its own head lift, its own pillow tilt, and its own remote. One partner can recline and tilt their head while the other lies flat, and neither has to disturb the other to do it.

Is this a good adjustable bed for couples?

It is built for couples. The split head and dual remotes let two sleepers with different habits, one who snores, one with neck pain, share a single king bed without compromise. The shared foot section still lets them match leg positions when they want to.

What mattress works with a split-head base?

A flexible mattress that bends with the frame, such as memory foam or latex. For full independent head movement, a split-top mattress or two head-split sections work best, since a single rigid top would resist the divided head motion. The non-slip deck fabric helps hold the mattress as each side adjusts.
