| Specification | Details |
| Model Number | DB15 |
| Motor Configuration | Four Motors(Head and Foot Adjust, Pillow Tilt and Lumbar Support, Wall Hugger Feature) |
| Available Sizes | Twin XL (80”*38”),Full(75”*54”),Queen(80”*60”),King(80”*76”),Split Cal King(84”*36”) |
| Control System | Richmat/Okin Wireless Remote |
| Adjustable Features | Head and Foot Adjustment ,Pillow Tilt Adjustment, Lumbar Support Adjustment,Wall Hugger Feature |
| Massage Function | Head and Foot Massage With Waves and Modes |
| Adjustable Legs | 3”+3”+6” Adjustable Height (3”,6”,9”,12”total range) |
| Power supply Features | Battery Backup Power Supply |
| Special Function | One-Key Flat; Memory Preset Keys;Flashlight; TV/ZG/ANTI-SNORE Preset |
| Folding Design | Center Folding |
| Zero-clearance | Zero-clearance Design |
| Deck Material | Fabric+Plywood |
| Upholstery Foam | 3-inch EPE Foam |
| Upholstery fabric | Black anti-slip fabric and Black Upholstered Linen Fabric |
| Lighting and USB | 2*USB/TYPE and 2*Under Bed Lights |
| Bluetooth App | Yes |
| Optional Features | Sleep Tracking System; Voice Command Control; Solid Wood Bed Legs; HBB |
| Certificates | CE,UL,ETL,SAA and FCC;Law Label Certificates |
| Tests | 15,000 Cycle of Testing;16 CFR Part 1633 Testing; |
| Weight capacity | 800LBS |
| Warranty | 1. Electrical components come with a three-year warranty and 5 years warranty for the frame.2. We will provide you with 1% spare parts for free when container loading. |

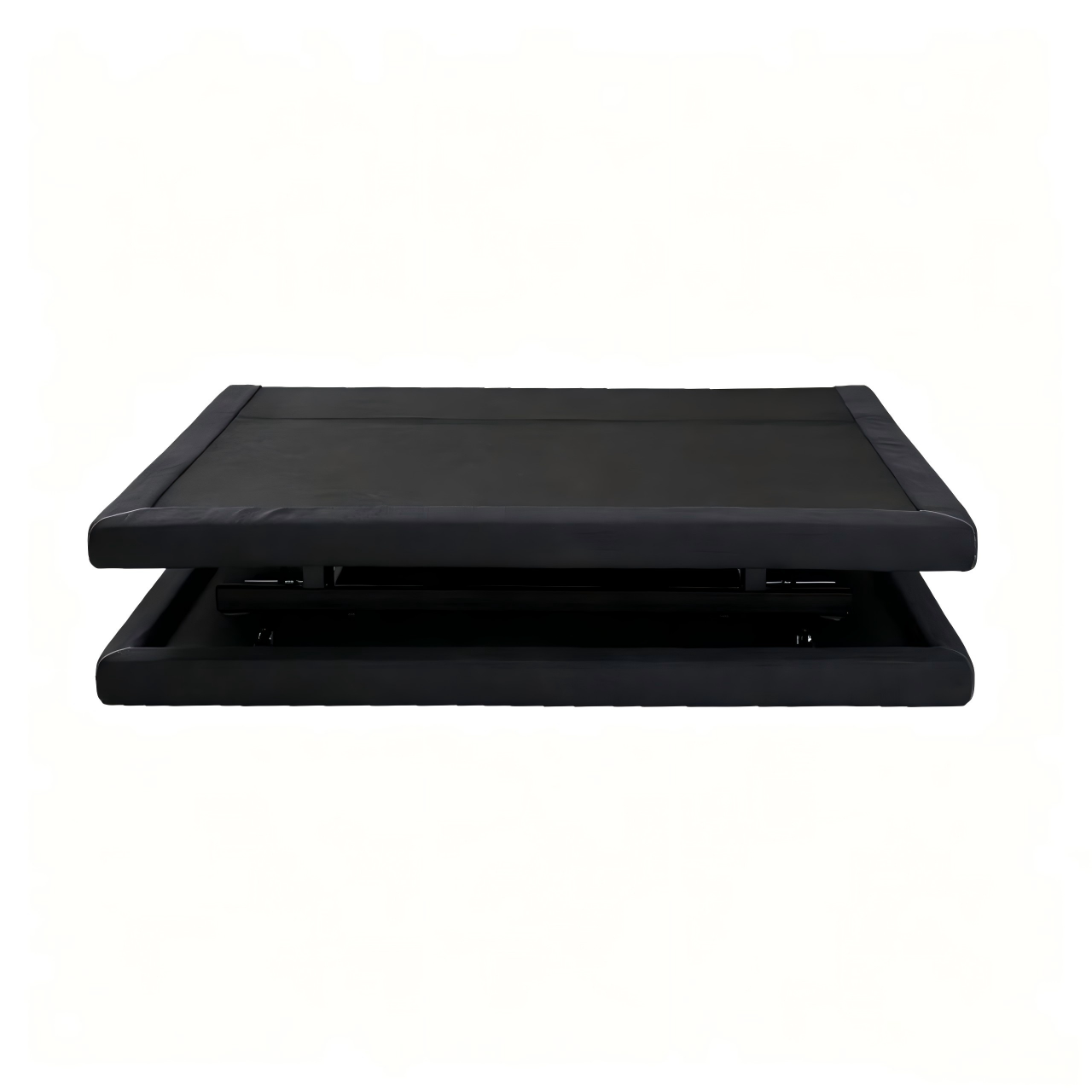

The AF-DB15 solves a small annoyance that bugs people every night on a regular adjustable base: as the head rises, the body drifts away from the headboard and the nightstand moves out of reach. The wall hugger mechanism fixes that by sliding the whole base back toward the wall as it lifts, so the sleeper stays level with the bedside table and lamp. Four motors drive the bed, and it comes loaded, making it a fit for brands that want one flagship base to cover the broadest slice of buyers.
How the Wall Hugger Glide Works
On a standard base, raising the head pivots the upper body forward, pushing the sleeper toward the foot of the bed and away from the wall. The AF-DB15 runs the lift on a tracked frame that travels backward at the same time, canceling out that forward drift. The result is that the head end stays close to the headboard through the full range, so a phone, a glass of water, or a book on the nightstand is still within arm's reach when sitting up. It is the kind of detail that separates a premium base from an entry one.
A Loaded Four-Motor Build

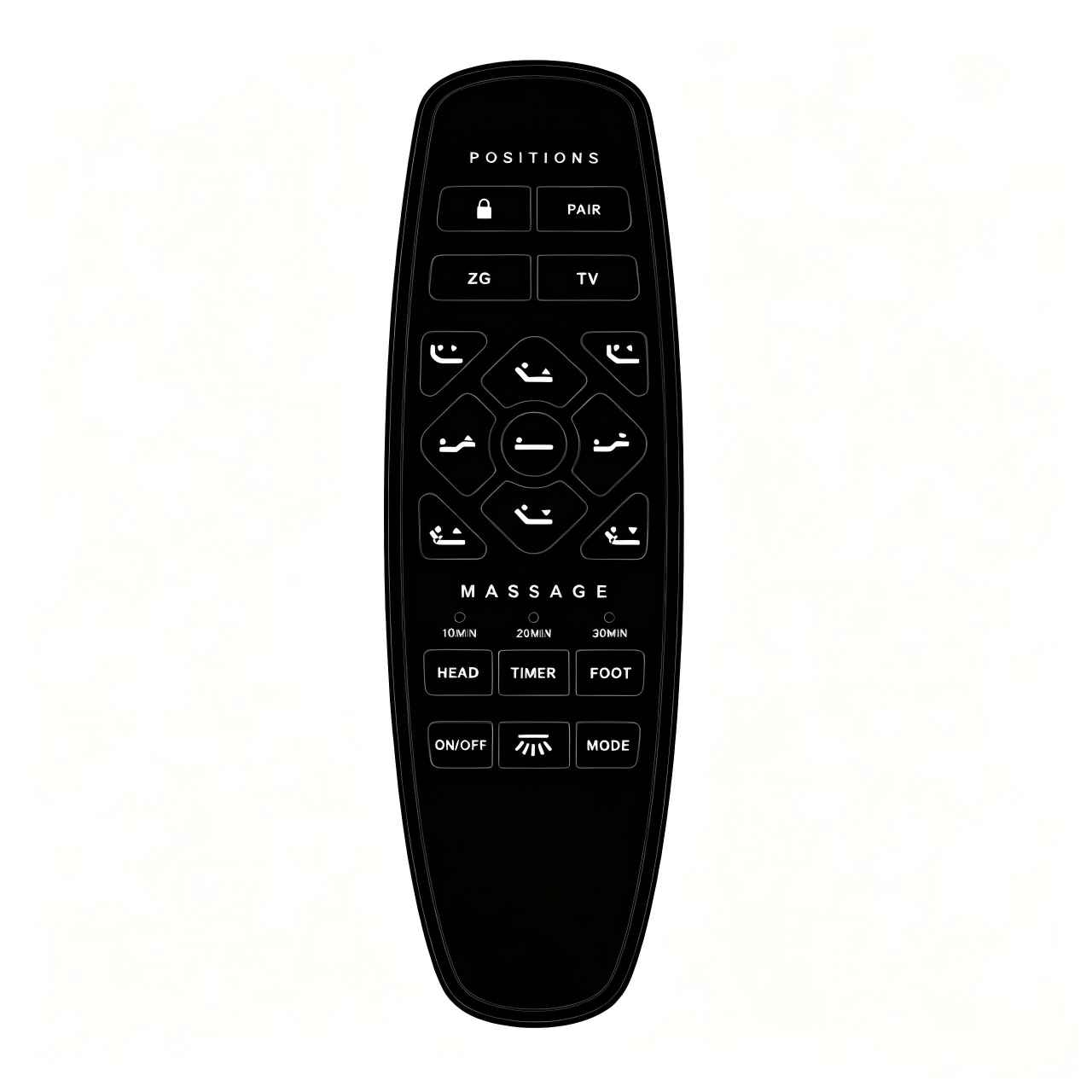

Beyond the glide, the AF-DB15 carries the features a top-tier buyer expects. The four motors cover head and foot movement plus added articulation, and the bed includes head and foot massage with wave and mode settings. A backup battery holds positions during an outage, and the remote stores memory presets along with TV and anti-snore modes. The base reads as a complete package rather than a stripped frame, which is why it suits a catalog's headline model rather than its entry slot.
Charging, App and Finish

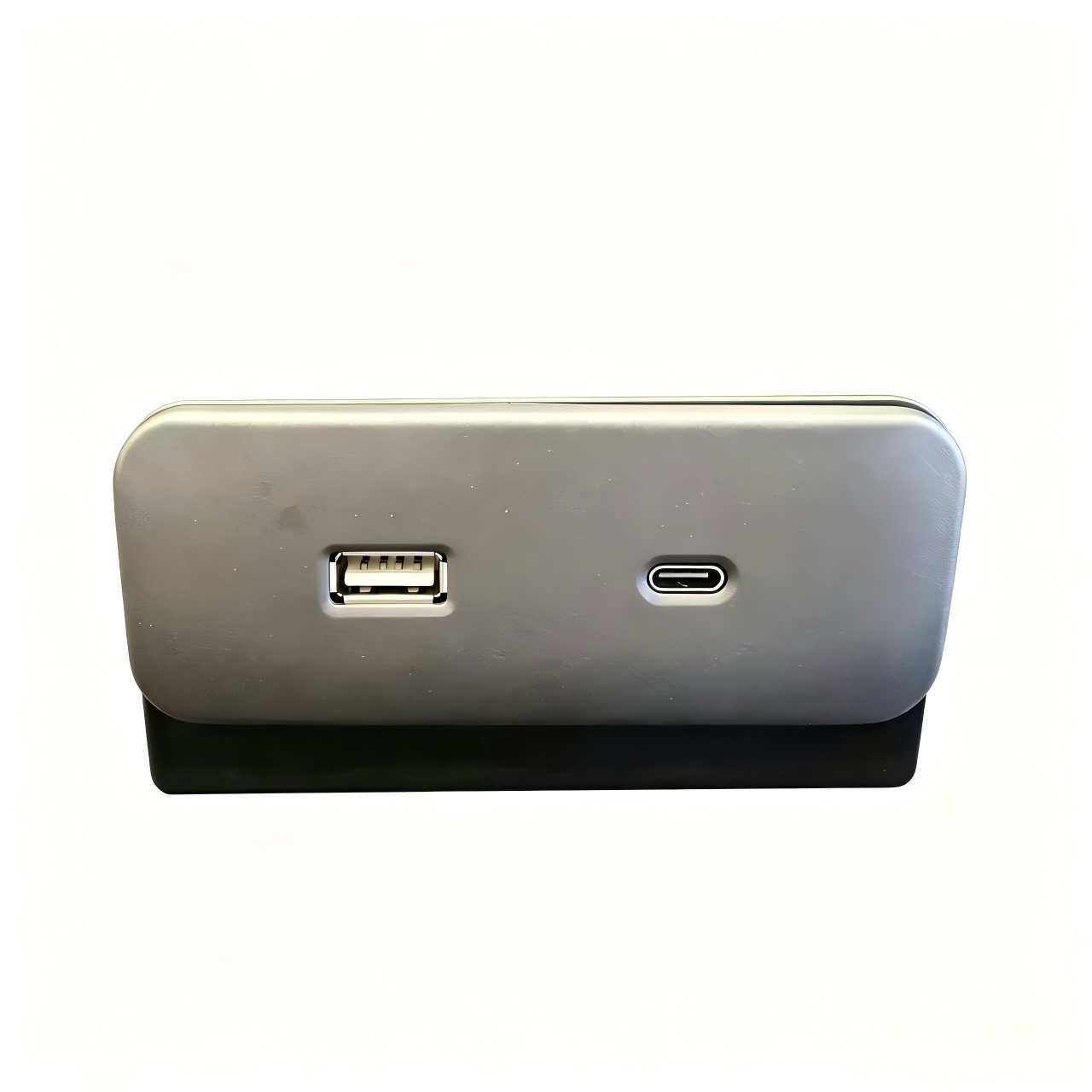

Two USB and Type-C ports sit near the head for keeping devices charged overnight, and two under-bed lights cast a soft glow for late trips across the room. A Bluetooth app puts control on a phone next to the wireless remote, with optional sleep tracking and voice command for a smart-bedroom build. The deck is plywood topped with a 3-inch EPE foam layer, wrapped in anti-slip black and upholstered linen, and a center-folding, zero-clearance frame keeps the unit manageable to ship and easy to drop into a bed frame.
Sizing, Build and Certification
The AF-DB15 spans Twin XL, Full, Queen, King, and Split Cal King, the full size run for a flagship base. Legs adjust through 3, 6, 9, and 12 inches, and the load rating is 800 lbs. It carries CE, UL, ETL, SAA and FCC marks plus Law Label paperwork, with 15,000-cycle endurance testing and 16 CFR Part 1633 flammability testing behind it. Warranty is three years overall and five on the frame, the assurance importers expect when a base sits at the top of a range.
Frequently Asked Questions
What is a wall hugger adjustable base?
It is a base that slides backward toward the wall as the head section rises. A normal base pushes the sleeper forward and away from the headboard when it lifts, which moves them off their nightstand. The wall hugger glide keeps the head end in place, so the bedside table stays reachable at any angle.
Is a wall hugger the same as zero-clearance?
No, they solve different problems. Wall hugger is about horizontal motion, keeping the bed close to the wall as it rises. Zero-clearance is about height, letting a base sit low inside an existing frame. The AF-DB15 has both: it glides toward the wall and also fits within a frame.
Why would a buyer pay more for the wall hugger feature?
Convenience and room layout. In a small bedroom where the bed sits against a wall with a nightstand beside it, the glide keeps everything within reach and stops the headboard gap from opening up. For shoppers who use their bed for reading or watching TV, that reachability is worth the step up.
Does it fit a standard bedroom setup?
Yes. The base works on its own legs or drops into a bed frame, and the wall hugger motion is designed to keep a small clearance from the wall rather than need extra space. The full size run, from Twin XL to Split Cal King, covers most bedroom layouts.
What mattress should go on it?
A flexible mattress that bends with the base, such as memory foam, latex, or a bend-rated hybrid. Rigid innerspring models resist the articulation and are a poor match. The non-slip deck fabric keeps the mattress seated as the base lifts and glides.
